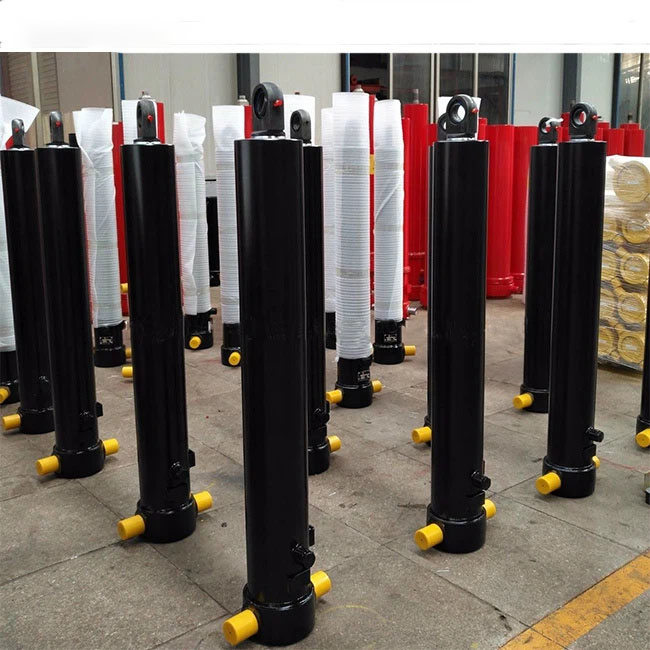

Unlike tie-rod cylinders that use threaded rods to hold the cylinder together, welded cylinders have a one-piece welded construction.
Here are some key features and considerations regarding welded cylinders:
Construction: Welded cylinders are made from a single piece of seamless steel tube or a welded steel tube. The end caps, piston, rod, and other components are welded directly to the cylinder barrel. This construction method provides a strong and rigid cylinder body without the need for external tie rods.
Strength and Durability: Welded cylinders are known for their robust construction and high strength. The welded design eliminates the potential weaknesses associated with tie-rod cylinders, making them more suitable for heavy-duty applications that require high force and pressure.
Compact Design: Welded cylinders have a more compact design compared to tie-rod cylinders. The elimination of external tie rods allows for a smaller overall cylinder size, making them ideal for applications with space constraints.
Resistance to Leakage: The welded construction of the cylinder provides excellent sealing properties, reducing the risk of leaks and ensuring efficient operation. The absence of external tie rods also eliminates potential leak points.
Customization: Welded cylinders can be customized to meet specific application requirements. This includes options such as different bore sizes, stroke lengths, mounting configurations, and rod end styles. Customization allows for optimal performance and integration into different hydraulic systems.
Applications: Welded cylinders are commonly used in various industrial applications, including heavy machinery, construction equipment, mining machinery, agricultural equipment, material handling, and more. They are particularly suitable for applications that involve high force, heavy loads, and harsh operating conditions.
When selecting a welded cylinder, considerations such as the required force capacity, stroke length, operating pressure, mounting style, and compatibility with the hydraulic system should be taken into account.
